Dynamic Engineering's IP Compatible Designs

The IndustryPack compatible IP-Parallel-IO design adds 48 digital parallel IO lines to one slot of your carrier board. Perfect for your embedded control applications.

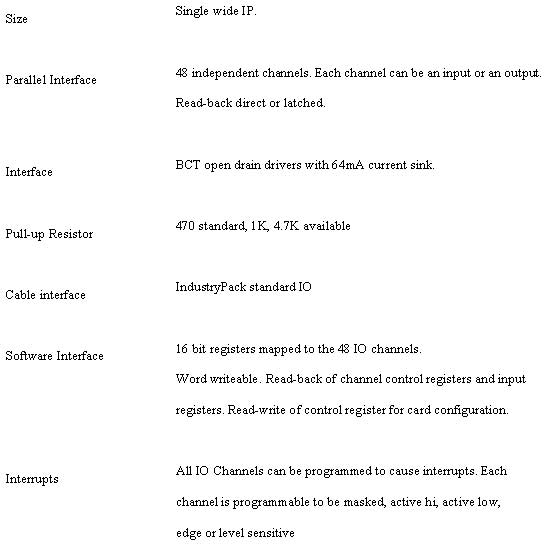

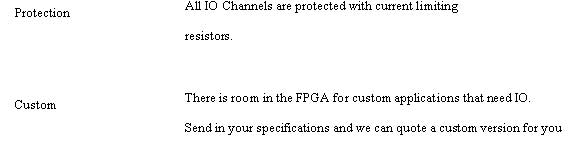

Each channel is programmable to be an input or an output on a channel-by-channel basis via software. All 48 IO channels can be used as interrupt generators. Interrupts are programmable to be enabled, active high or low, and edge or level triggered. Outputs are driven with 64 mA open-drain devices to allow multi-drop applications. A 470 ohm pull-up resistor is provided on board.

An external oscillator position is provided for custom situations.

The registers are mapped as 16 bit words. All registers are read-writeable.

Dynamic Engineering, Inc., 435 Park Drive, Ben Lomond, CA 95005. Tel: 831-336-8891; Fax: 831-336-3840.
